Product attributes
| Dedicated : |  ,  |
| Voltage: | 24V |
| Motor: | 12,5 KM |
| Pulling rate: | 42000 lb / 19050 kg |
| Gear train: | 4 stage planetary |
| Reduction rotio: | 600:1 |
| Brake: | dynamic |
| Length of the steel cable: | 35 m (max 62 m) |
| Length of the synthetic rope: | 35 m |
| Weight: | 176 kg |
| Mounting bolt patern: | 373 mm x 114 mm/ 373 mm x 224 mm |

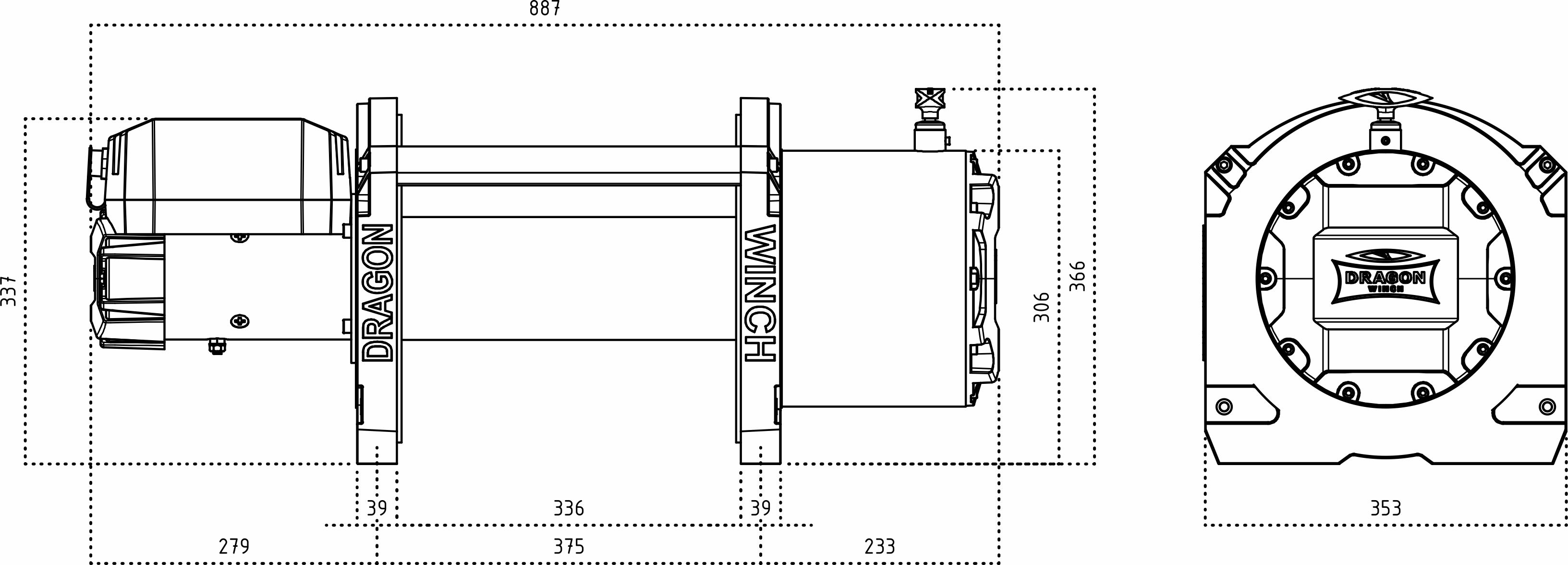

| Overall product dimensions (LxWxH): | 887 mm x 353 mm x 306mm |
CABLE WINDING SPEED AND POWER CONSUMPTION (THE FIRST CABLE LAYER ON THE DRUM)
| CABLE LOAD | Kg | 0 | 5715 | 11430 | 19050 |
| CABLE SPEED | m/min | 2,1 | 1,49 | 0,85 | 0,43 |
| POWER CONSUMPTION 24 V | amp | 25 | 132 | 240 | 383 |
PULLING FORCE DEPENDING ON CABLE LAYER
| CABLE LAYER | 1 | 2 | 3 | 4 | |
| CABLE PULL | kg | 19050 | 15421 | 12954 | 11167 |
| CABLE LENGTH ON THE DRUM | m | 8,54 | 19,09 | 31,65 | 35 |

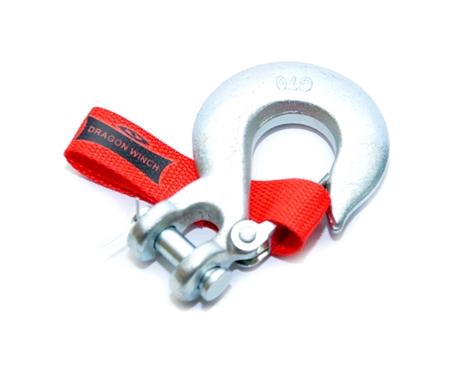

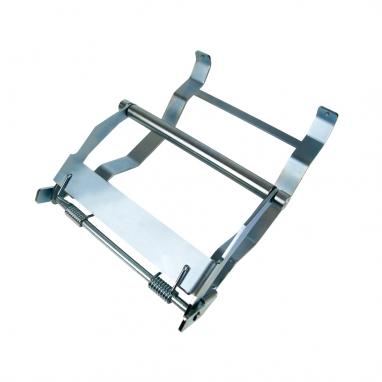

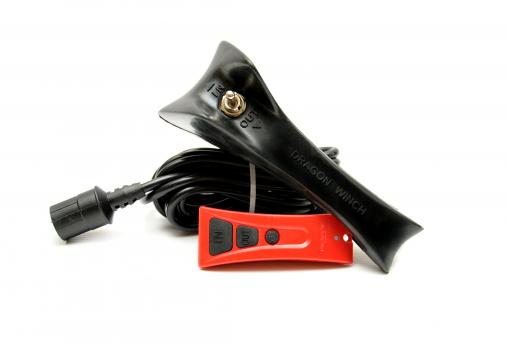

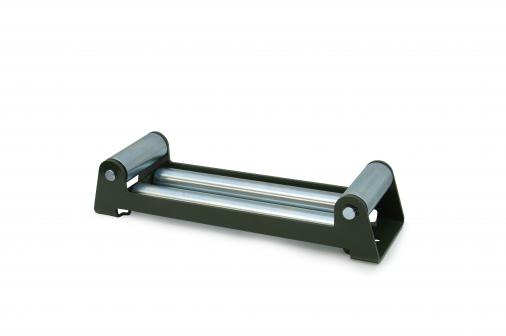

Kit components
