Product attributes
| Dedicated : |  ,  |
| Voltage: | 24V |
| Pulling rate: | 22000 lb/ 9979 kg |
| Gear: | 3 stage planetary |
| Reduction: | 463:1 |
| Brake: | dynamic |
| Length of the wire rope: | 31 m |
| Weight: | 80 kg |

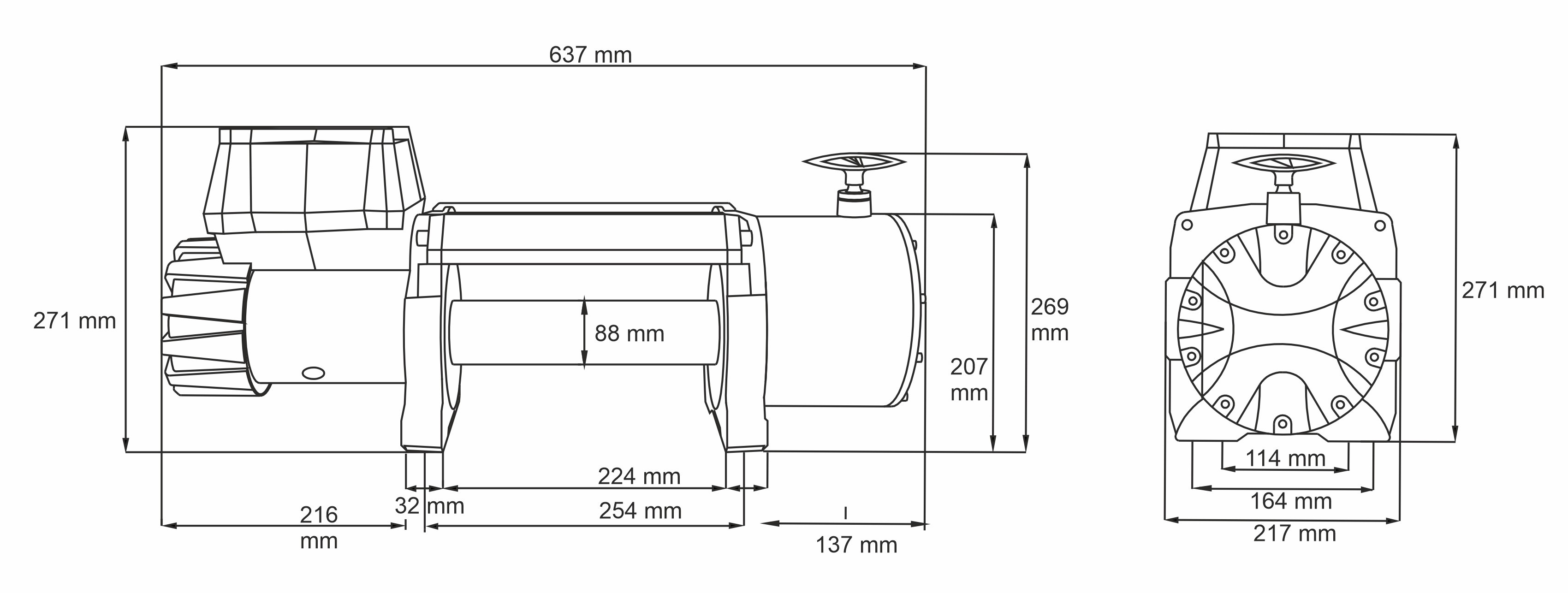

| Spacing of mounting screws: | 254 mm x 114 mm/254 mm x 164 mm |

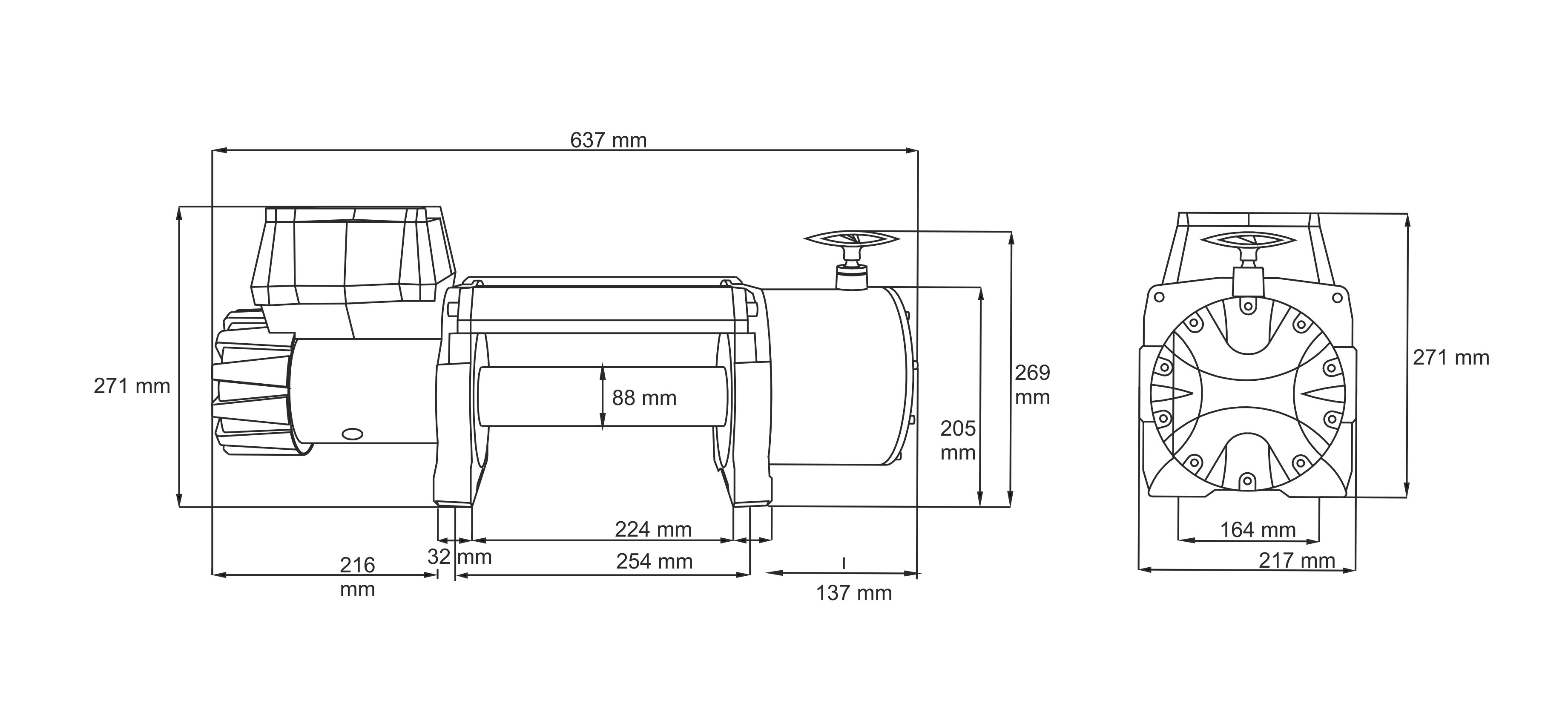

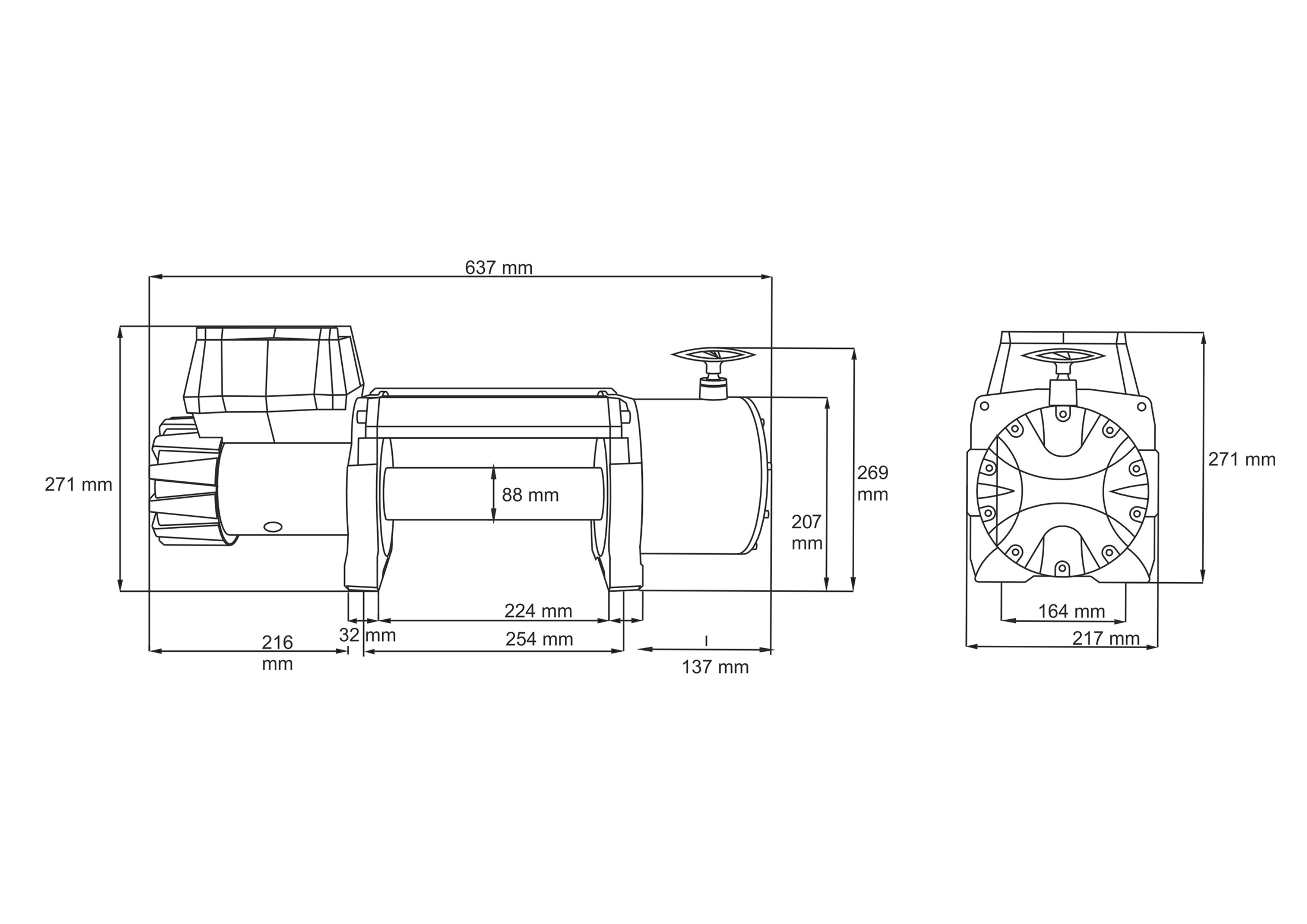

| Overall size: | 637 mm x 217 mm x 271 mm |
ROPE WINDING SPEED AND POWER CONSUMPTION (THE FIRST ROPE LAYER ON THE DRUM)
| ROPE LOAD | Kg | 2721 | 5443 | 9979 | |
| ROPE SPEED | m/min | 4,5 | 3,7 | 3,0 | 1,7 |
| POWER CONSUMPTION 24 V | amp | 42 | 112 | 232 | 305 |
PULLING FORCE DEPENDING ON ROPE LAYER
| ROPE LAYER | 1 | 2 | 3 | 4 | 5 | |
| ROPE PULL | kg | 9979 | 7883 | 6786 | 5887 | 4889 |
| ROPE LENGTH ON THE DRUM | m | 5,1 | 11,1 | 18,4 | 26,5 | 31,0 |

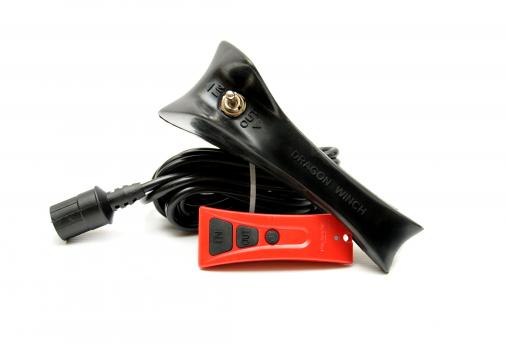

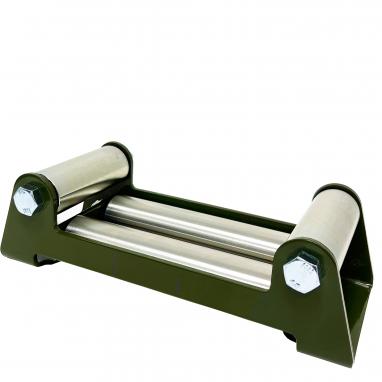

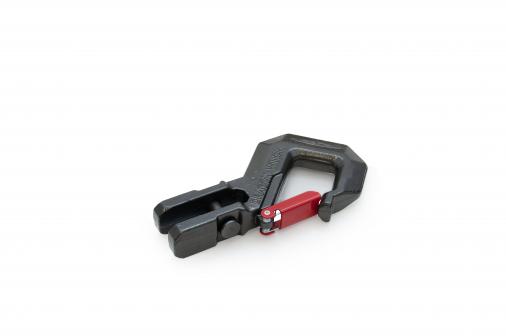

Kit components
See winch in action
