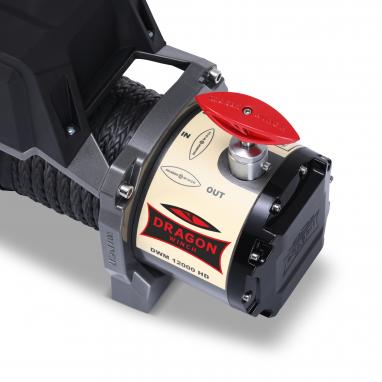

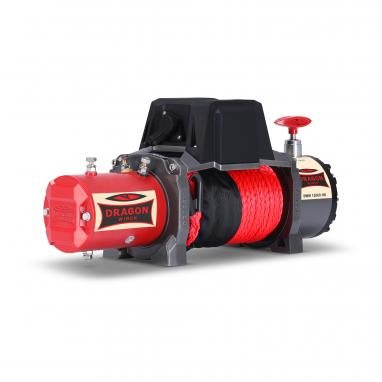

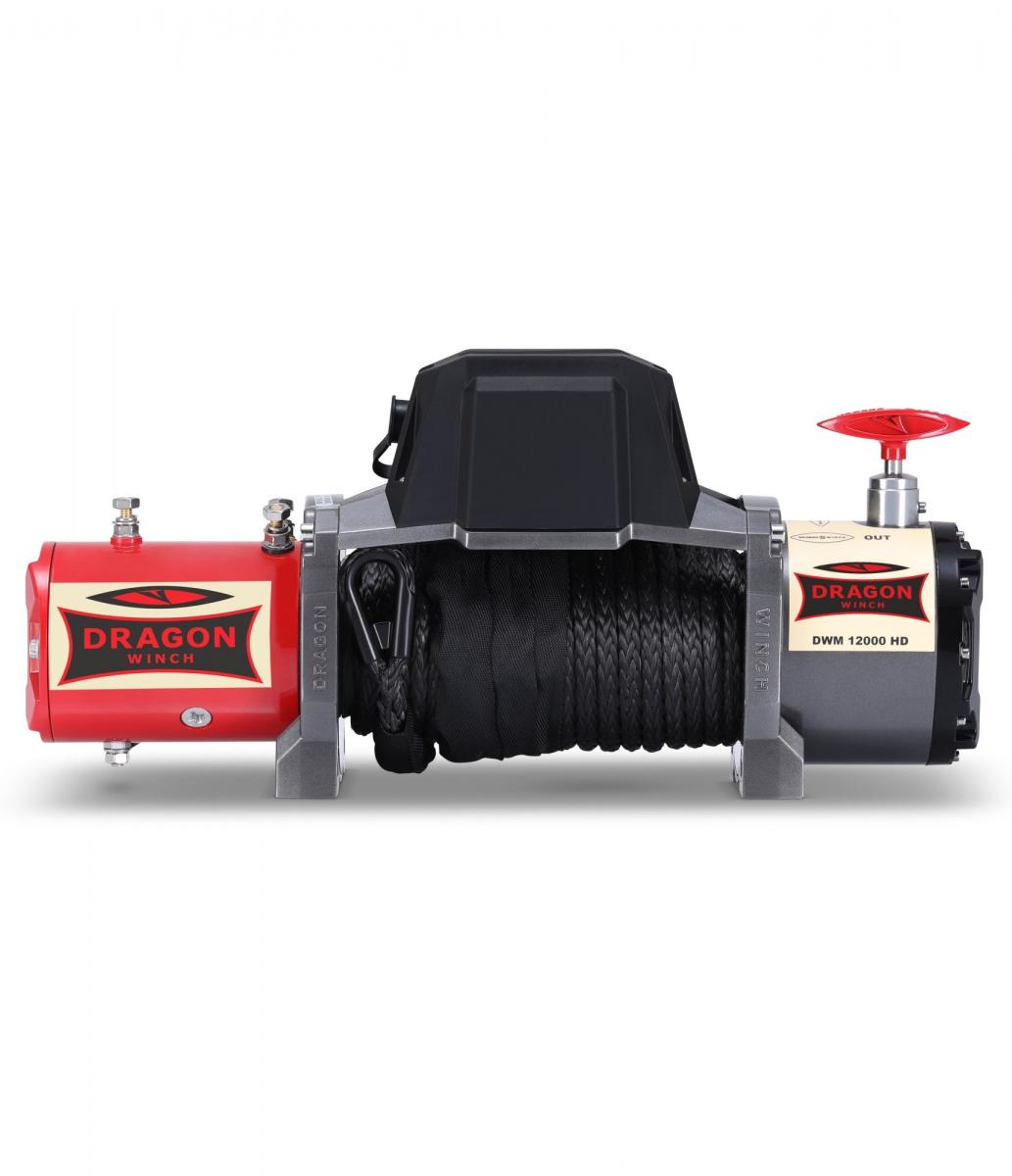

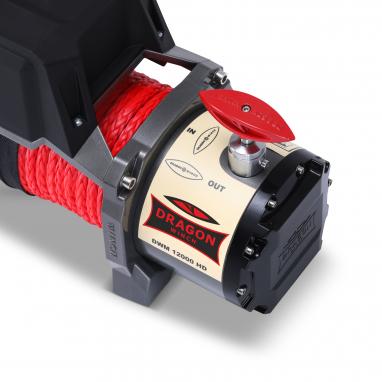

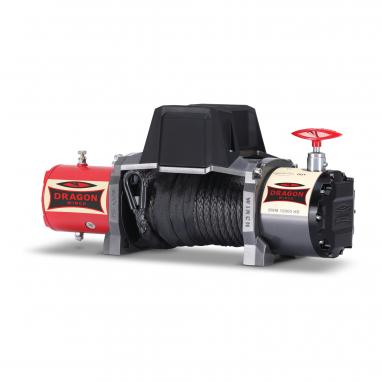

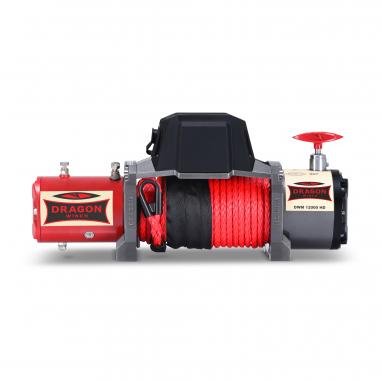

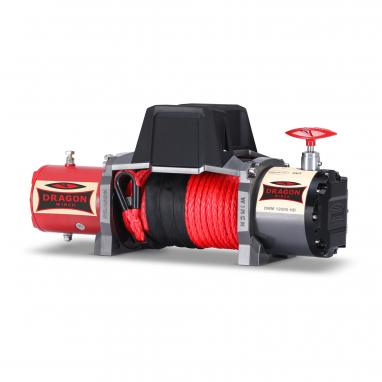

DWM 12000 HDFree delivery
Voltage:
Price:518.25EUR
Quantity: pcs
Product attributes
Dedicated :industrial vehicles, off-road vehicles
Voltage:12V/24V
Motor:6,8 HP
Pulling rate:12000 lb/5443 kg
Gear:3 stage planetary
Reduction:265:1
Brake:dynamic
Length of the wire rope:30 m
Length of the synthetic rope:30 m
Overall size:537 mm x 159 mm x 243 mm
Weight:42 kg
Spacing of mounting screws:254 mm x 114 mm
ROPE WINDING SPEED AND POWER CONSUMPTION ( THE FIRST ROPE LAYER ON THE DRUM)
ROPE LOAD kg - 1814 3629 5443
ROPE SPEED m/min 5,9 4,4 2,8 0,9
POWER CONSUMPTION 12V ampery 58 158 314 415
POWER CONSUMPTION 24V ampery 35 89 178 225



PULLING FORCE DEPENDING ON ROPE LAYER

ROPE LAYER   1 2 3 4 5
ROPE PULL kg 5443 4299 3701 3211 2667
ROPE LENGTH ON THE DRUM m 5,3 11,5 18,6 27,3 30,0

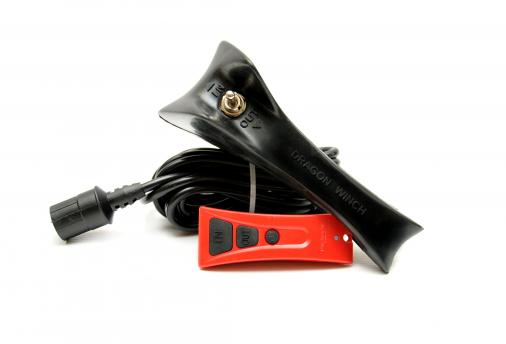

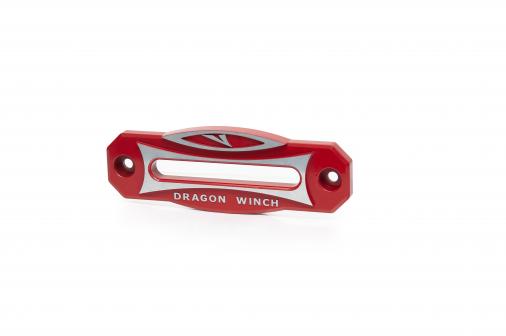

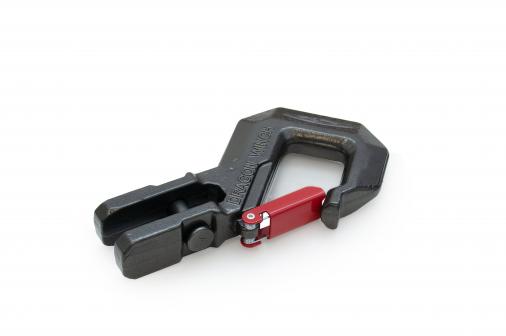

Kit components
  • DWM 12000 HD S
  • DWM 12000 HD S
  • DWM 12000 HD S
  • DWM 12000 HD S
  • DWM 12000 HD S
  • DWM 12000 HD S
360° view
See winch in action
