Product attributes
| Dedicated : |  ,  |
| Voltage: | hydraulic |
| Speed of the rope: | 5 m/min |
| Overall product dimensions (LxWxH): | 660 mm x 384 mm x 349 mm |
| Pressure of oil: | 16/160 MPa/Bar |
| Oil flow: | 15-60 l/min |
| Capacity of the drum: | 40 m |
| Diameter of the wire rope: | 16 mm |
| Weight: | 199 kg |
ROPE WINDING SPEED AND POWER CONSUMPTION (THE FIRST ROPE LAYER ON THE DRUM)
| ROPE LOAD | kg | 1814 | 3629 | 9072 | |
| ROPE SPEED | m/min | 1,8 | 3,6 | 6 | 9 |
| PRESSURE | Mpa | 2,5 | 4,2 | 8,5 | 17,5 |
| OIL FLOW | l/min | 15 | 30 | 50 | 75 |
PULLING FORCE DEPENDING ON ROPE LAYER
| ROPE LAYER | 1 | 2 | 3 | 4 | |
| ROPE PULL | kg | 9072 | 7661 | 6630 | 5843 |
| ROPE LENGHT ON THE DRUM | m | 10,3 | 22,5 | 35,9 | 50 |

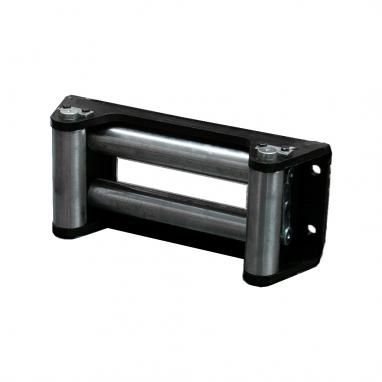

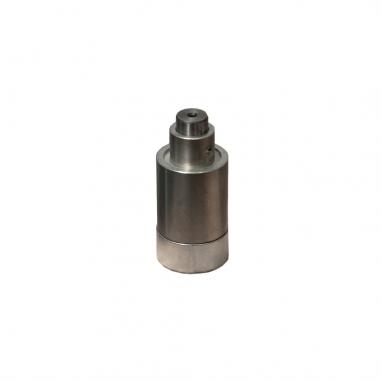

Kit components
Technical chart
