Start
/
WINCHES
/
Dragon Winch Hidra
/

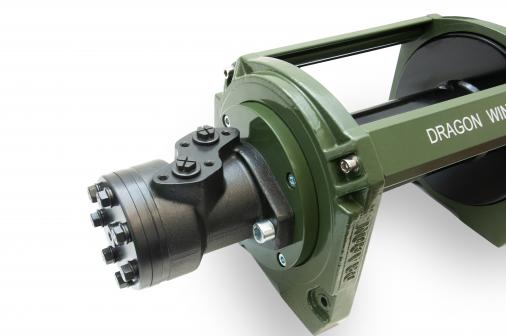

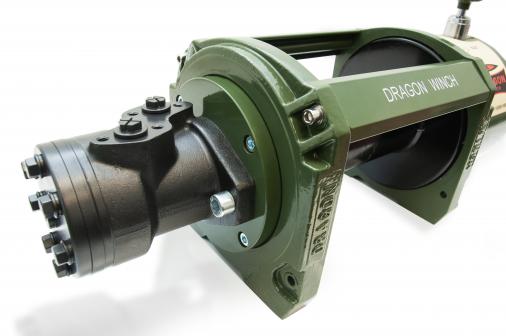

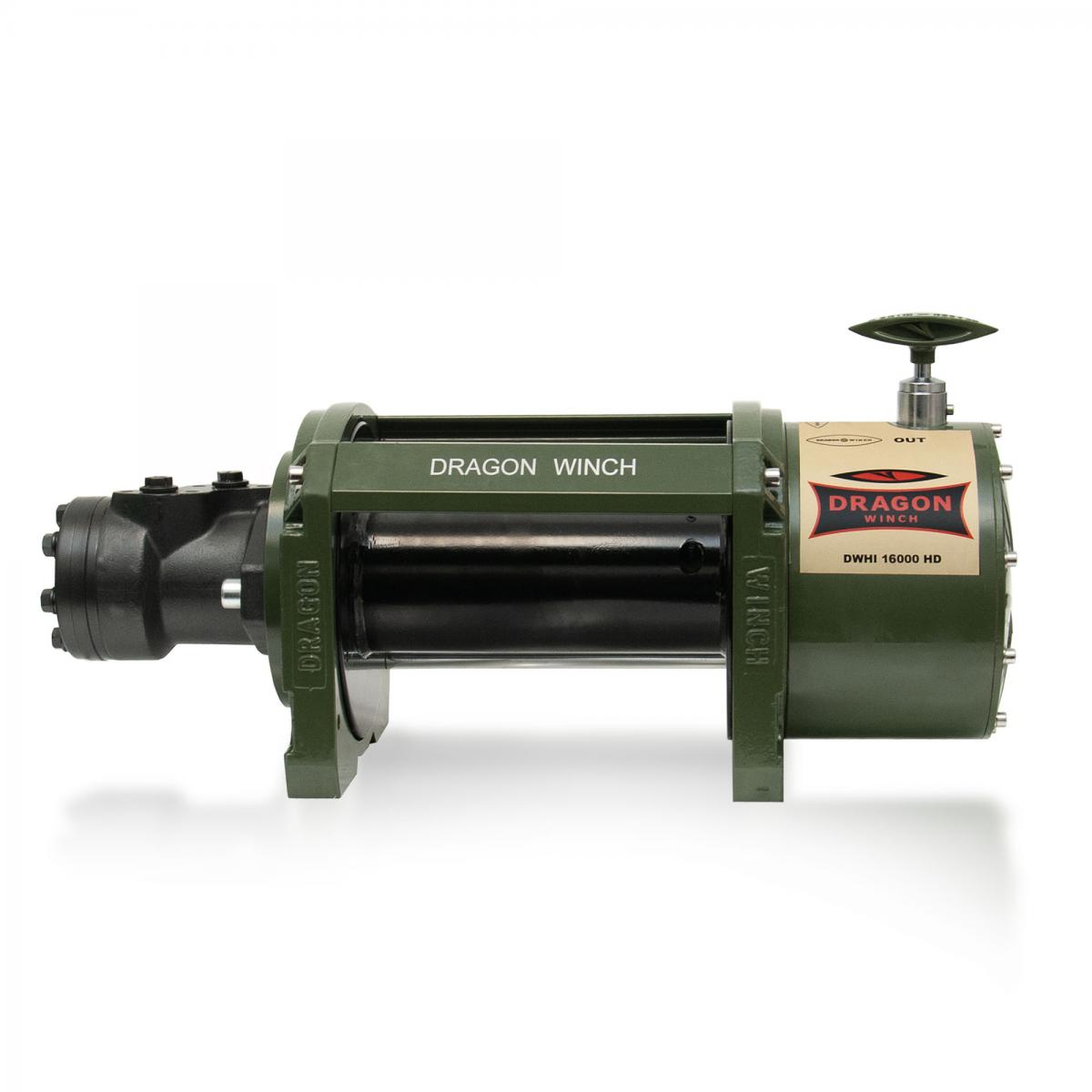

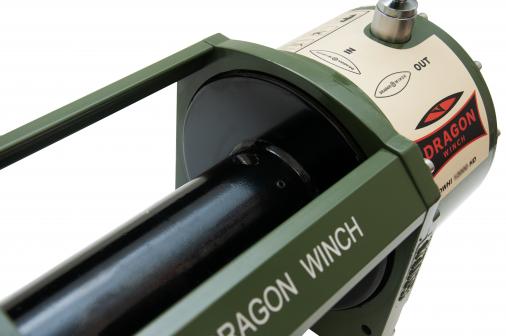

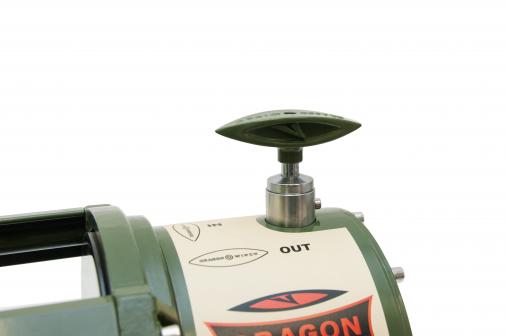

DWHI 16000 HD
DWHI 16000 HD
Stock
:
Stock
:
DWHI 16000 HD
Price
:
1322.91
EUR
Rating
:
0.00
/
5
(
0
votes)
Wish list
Ask the shop assistant
Add to comparison
Product attributes
Dedicated
:
,
Voltage
:
hydraulic
Pulling rate
:
16000 lb/7257 kg
Weight
:
72 kg
Max.pressure of oil
:
17,5 Mpa
Max.oil flow
:
60 l/min
Capacity of the drum
:
31 m
Diameter of the wire rope
:
11 mm
Number of rope layers
:
4

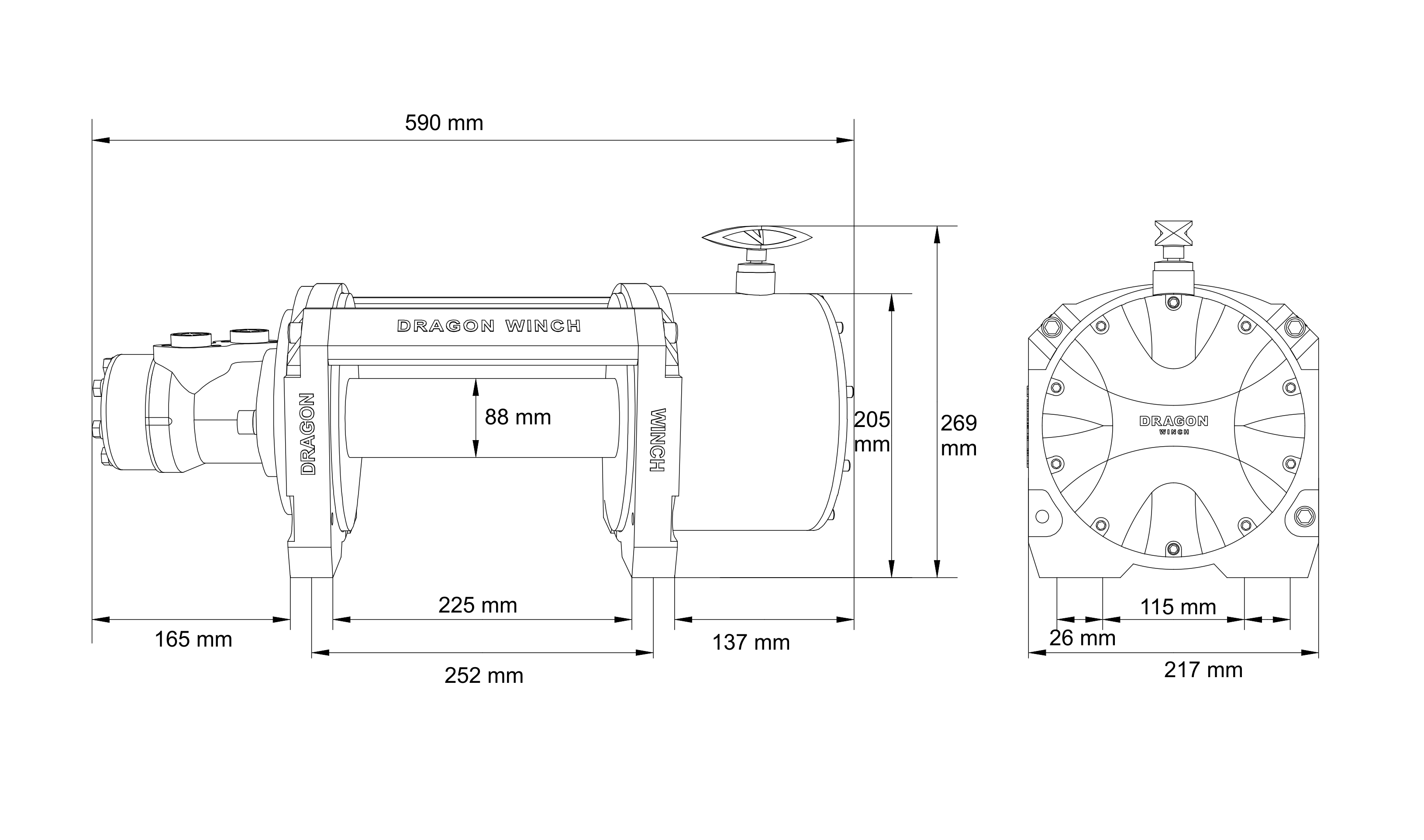

Overall size
:
590mmx269mmx217mm
Pulling force depending on rope layer:
first layer of rope: 7257 kg
last layer of rope: 4944 kg
Rope winding speed:
first layer of rope: 4,2 m/min
last layer of rope: 5,6 m/min

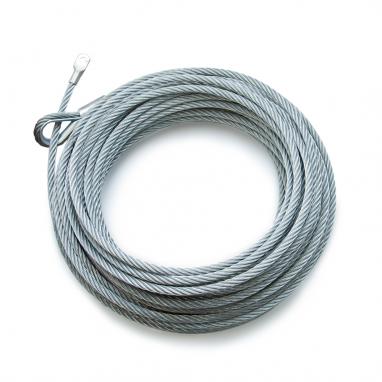

Rope included in set (to be wound on the drum by the customer)

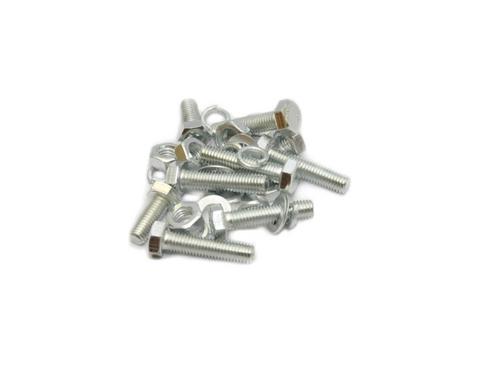

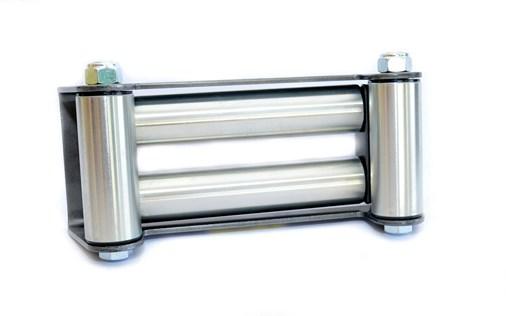

Kit components
Technical chart
3D model
