Product attributes
| Dedicated : |  ,  |
| Pulling rate: | 22000 lb/10000 kg |
| Capacity of the drum: | 60 m |
| Weight: | 305 kg |
| Voltage: | hydraulic |
| Speed of the rope: | 7 m/min |
| Pressure of oil: | 18/180 MPa/Bar |
| Oil flow: | 72 l/min |
| Diameter of the wire rope: | 18 mm |
| Overall size: | 660 mm x 470 mm x 505 mm |
Kit components

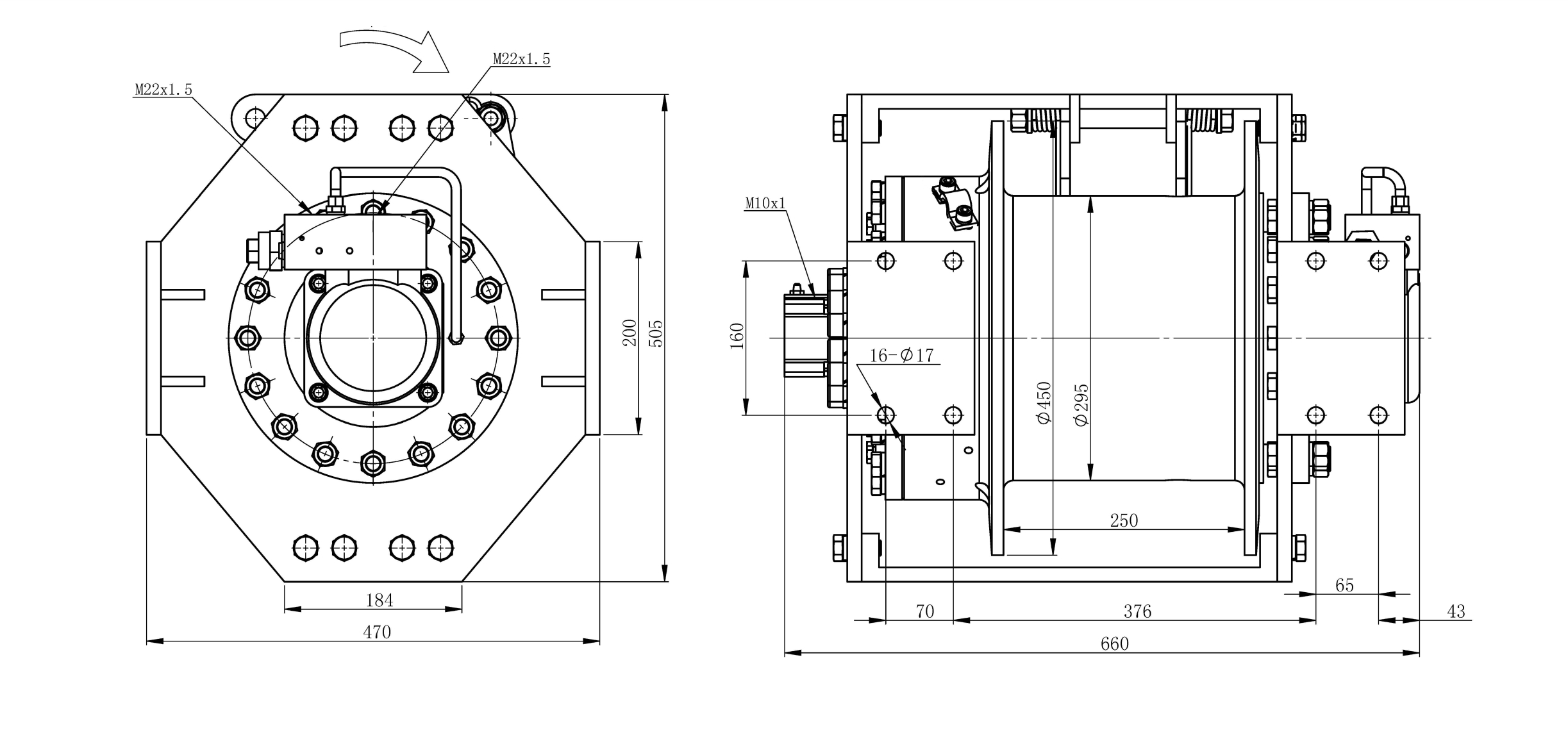

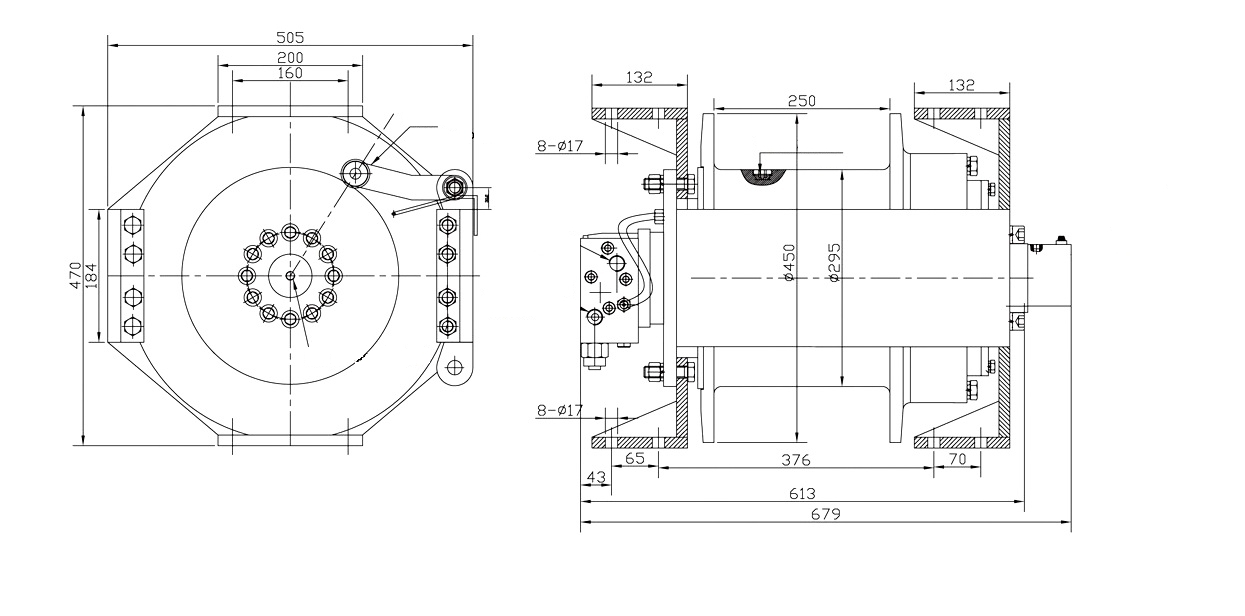

Technical chart
