Product attributes
Pulling rate:3310 lb/1500 kg
Capacity of the drum:31 m
Speed of the rope:38 m/min
Pressure of oil:16/160 MPa/Bar
Oil flow:55 l/min
Diameter of the wire rope:12 mm
Overall size:324 mm x 267 mm x 295 mm
Kit components
  • DWHI 33 HD
  • DWHI 33 HD

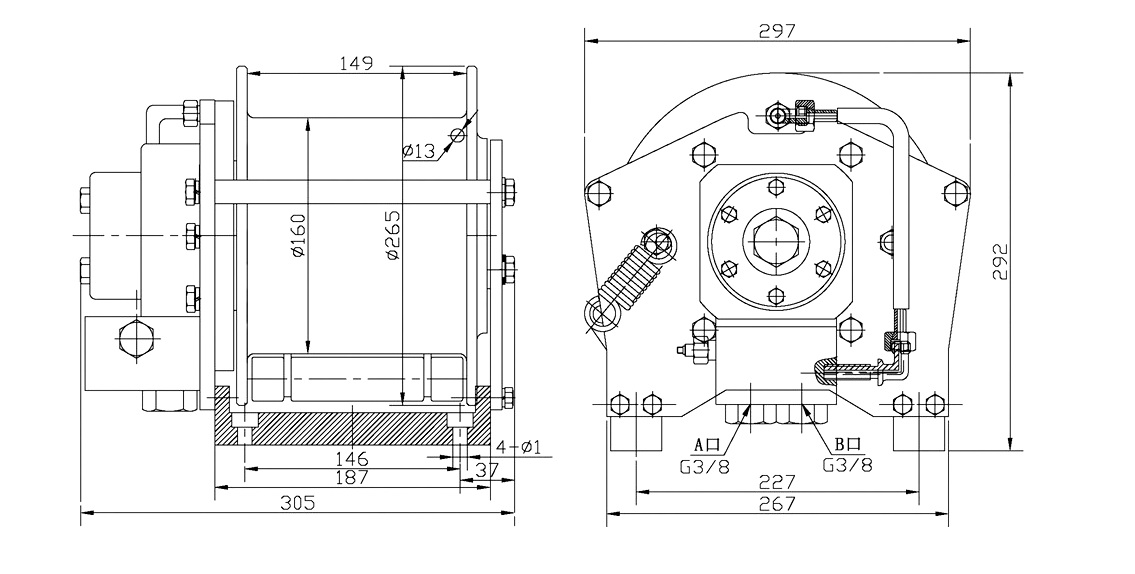

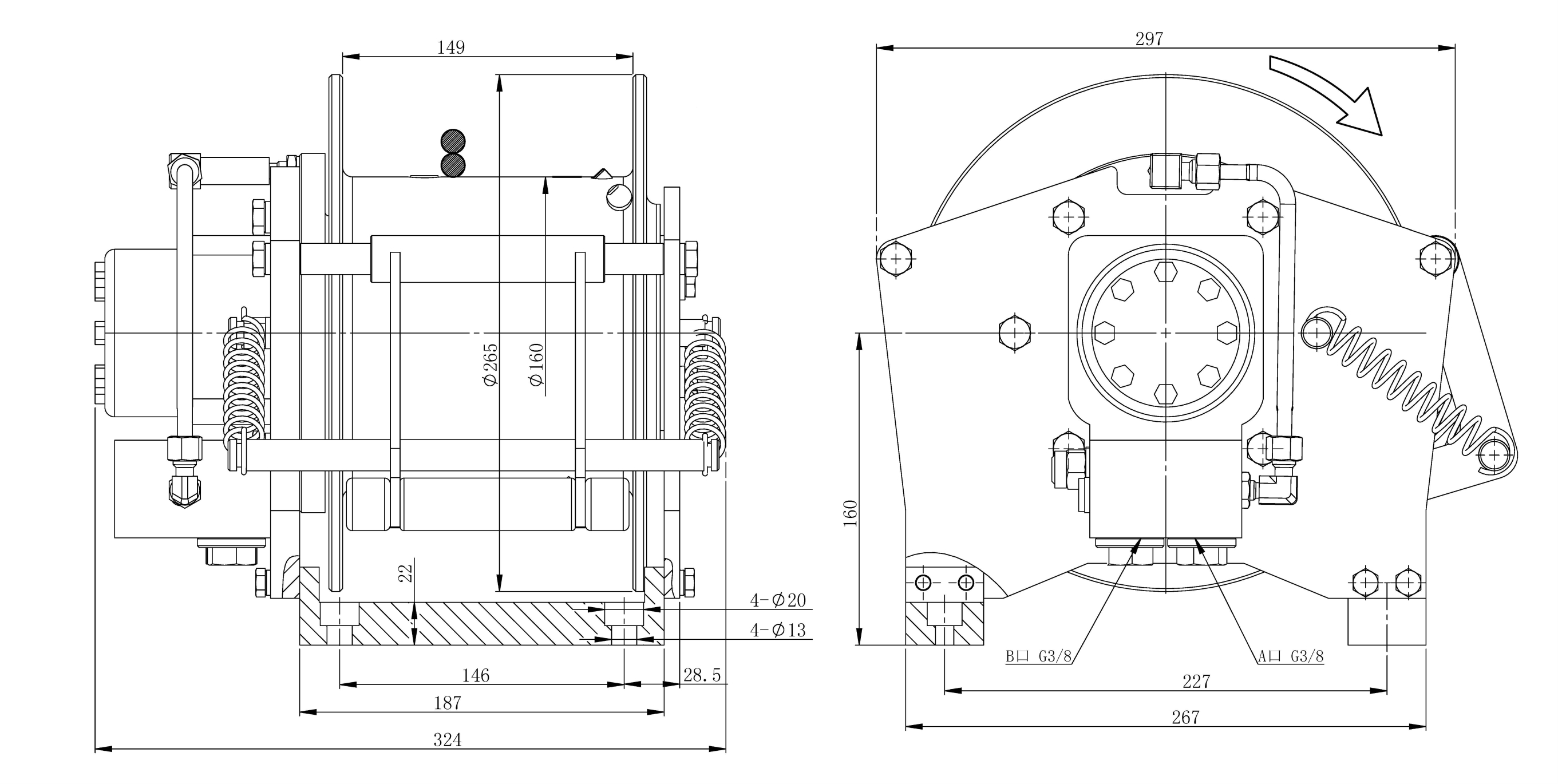

Technical chart
33 HD
