Product attributes
| Dedicated : |  |
| Voltage: | 12V |
| Motor: | 1,9 HP |
| Pulling rate: | 4500 lb/ 2041 kg |
| Gear: | 3 stage planetary |
| Reduction: | 138:1 |
| Brake: | automatic |
| Length of the wire rope: | 15 m |
| Length of the synthetic rope: | 15 m |
| Weight: | 13 kg |

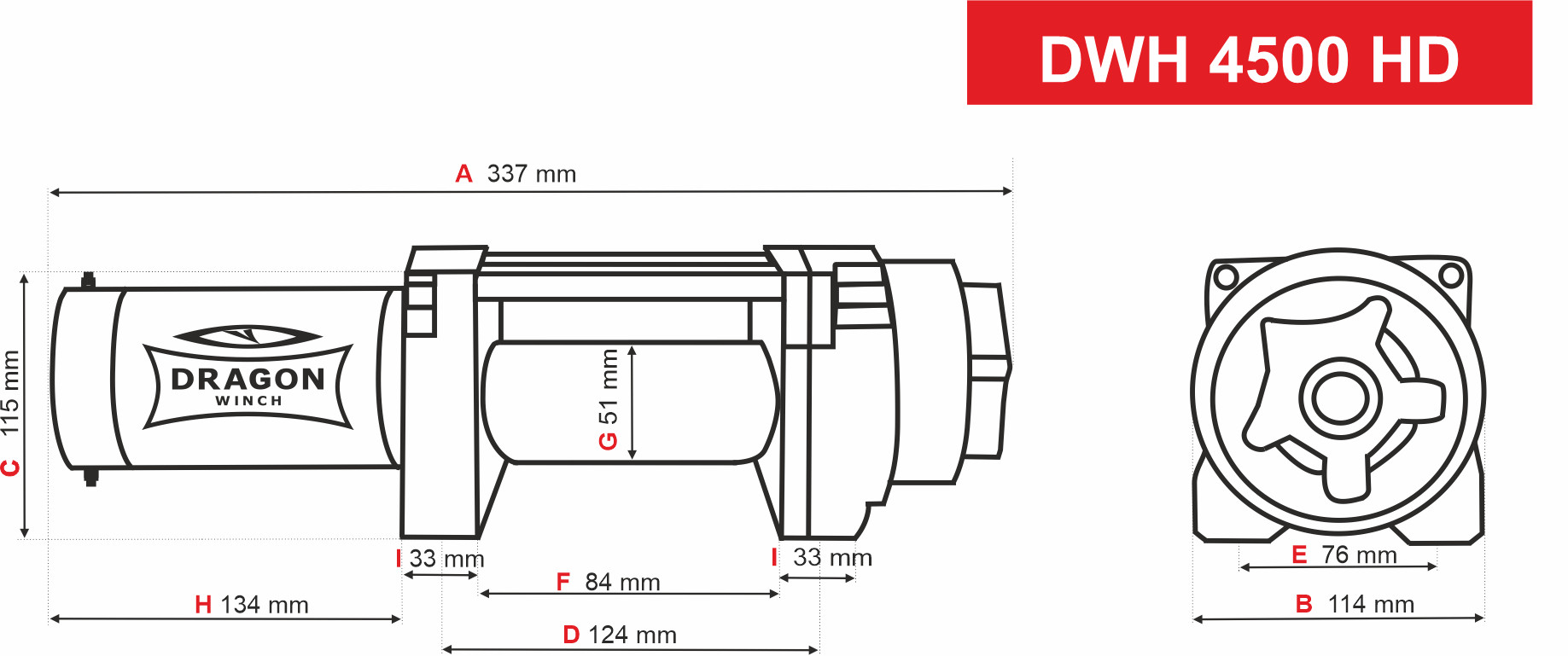

| Overall size: | 340 mm x 114 mm x 115 mm |
ROPE WINDING SPEED AND POWER CONSUMPTION (THE FIRST ROPE LAYER ON THE DRUM)
| ROPE LOAD | kg | - | 453 | 907 | 2041 |
| ROPE SPEED | m/min | 6,3 | 5,3 | 4,5 | 2,1 |
| POWER CONSUMPTION 12V | amp | 23 | 40 | 81 | 160 |
PULLING FORCE DEPENDING ON ROPE LAYER
| ROPE LAYER | 1 | 2 | 3 | 4 | 5 | |
| ROPE PULL | kg | 2041 | 1612 | 1388 | 1204 | 1001 |
| ROPE LENGTH ON THE DRUM | m | 2,3 | 4,9 | 8,0 | 11,4 | 15,0 |

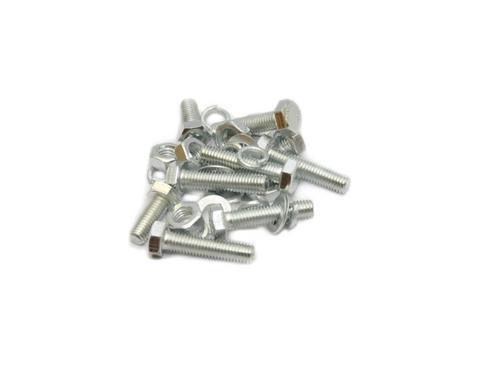

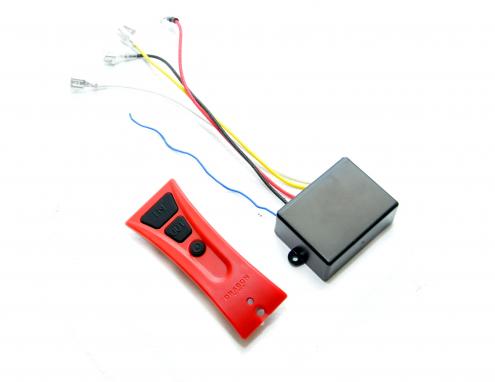

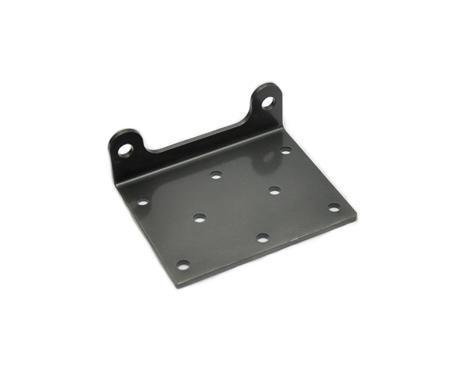

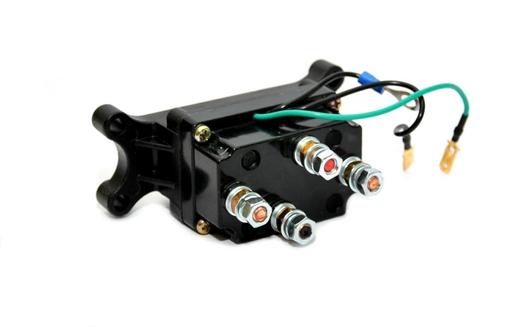

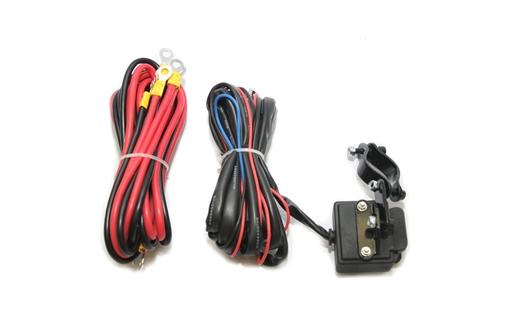

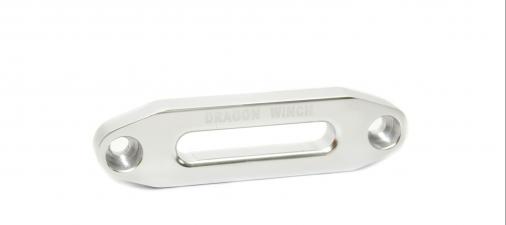

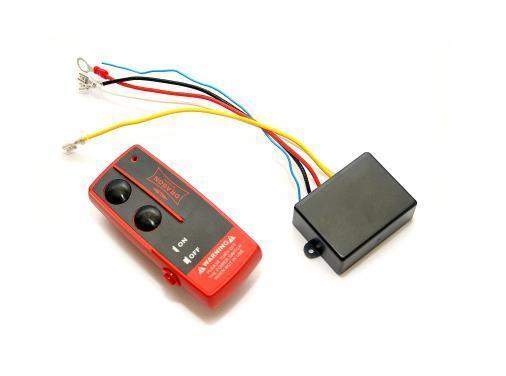

Kit components
360° view
See winch in action
